SKU:83887762

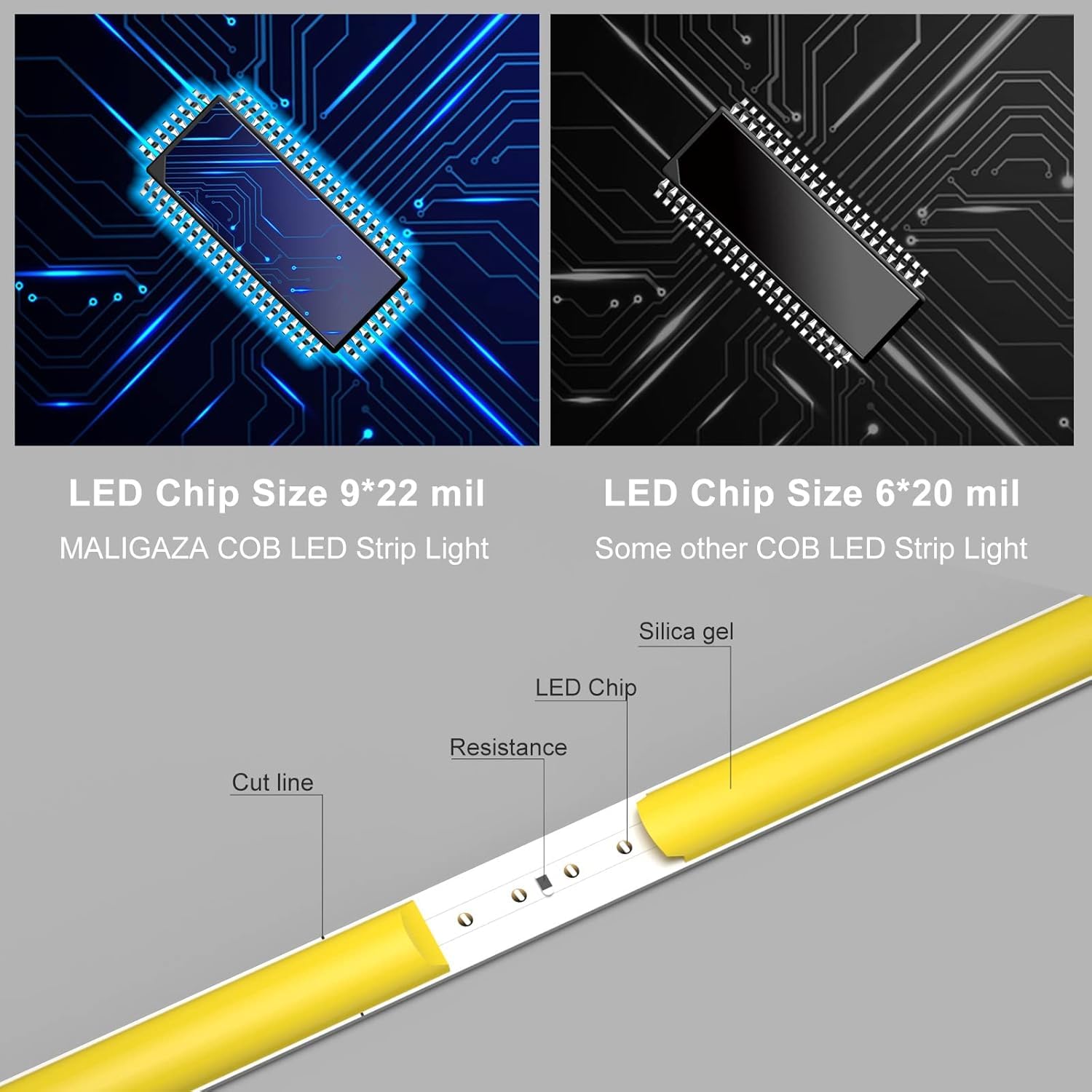

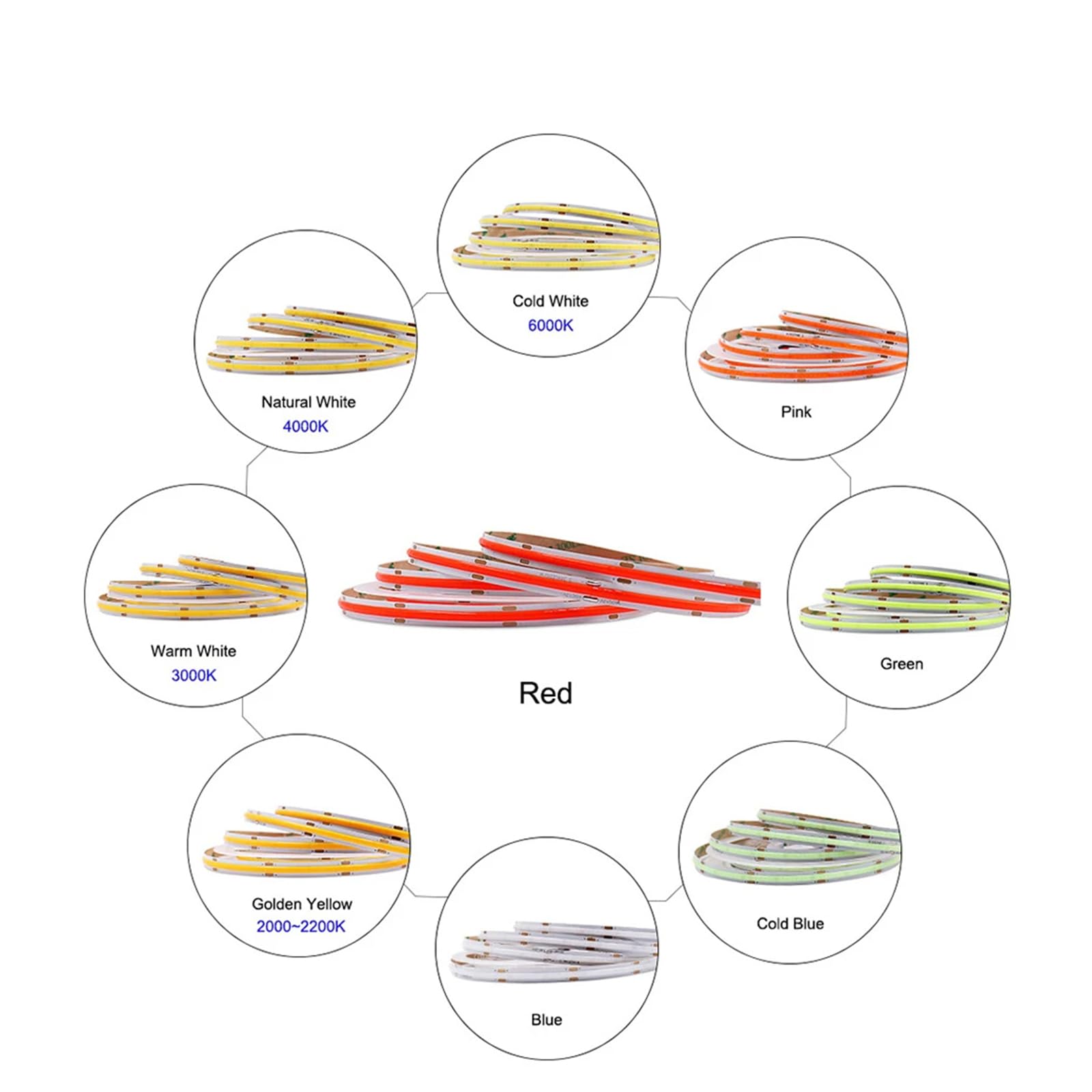

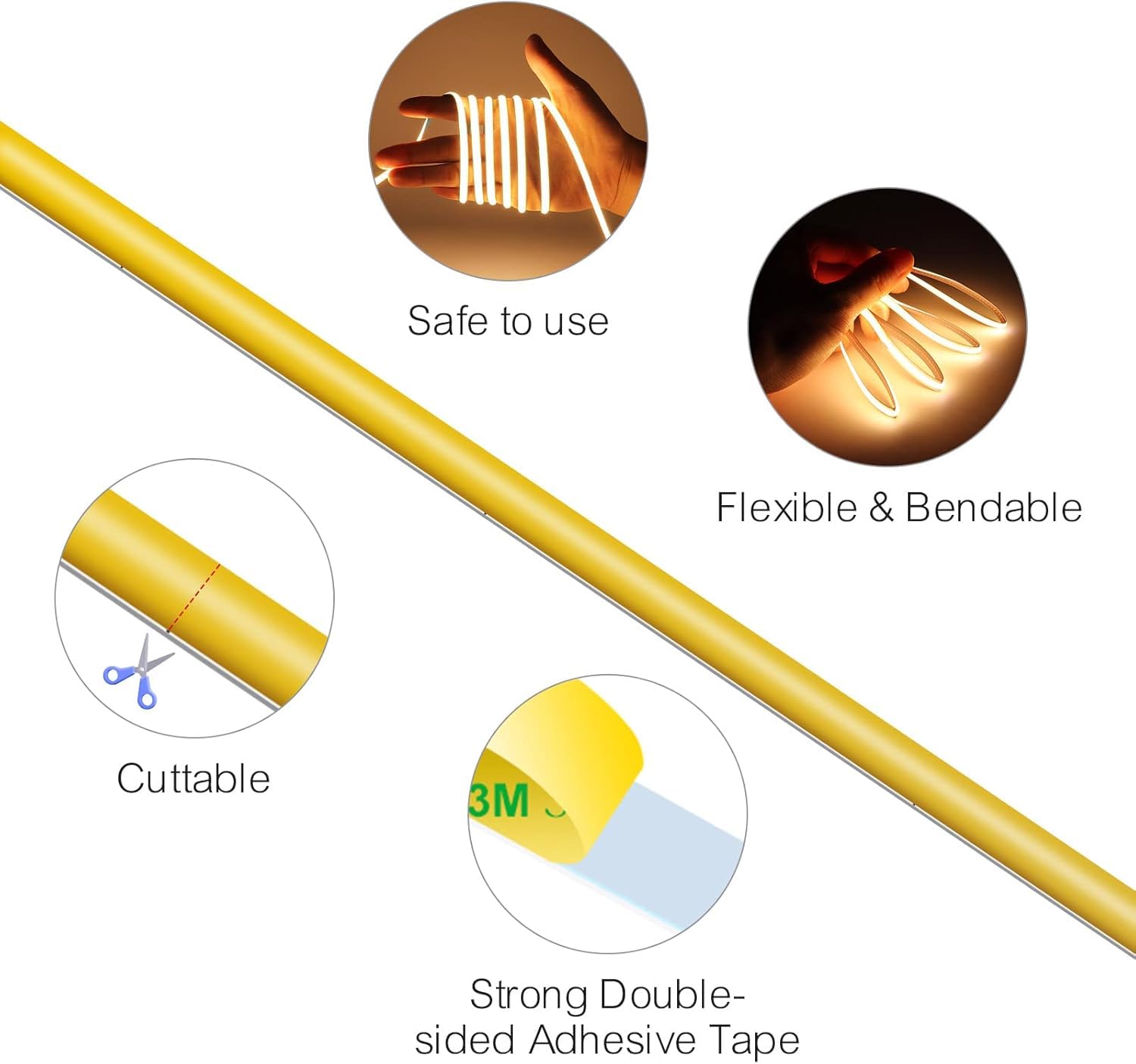

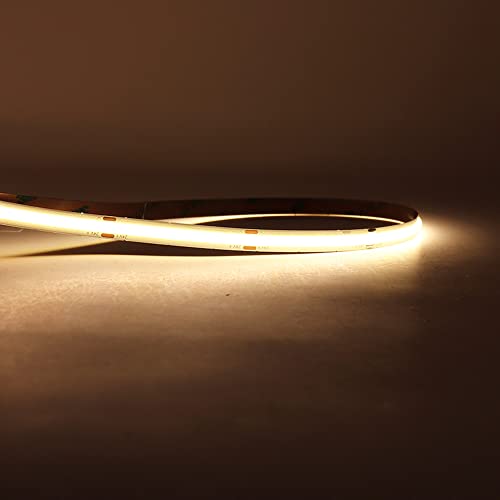

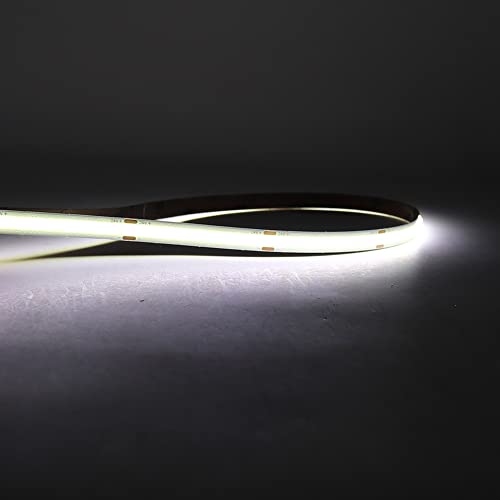

COB LED STRIP LIGHT PARAMETERS Product name: MALIGAZA 5MM COB LED LIGHT STRIPInput Voltage: DC12V or DC24V (CAN NOT connect to AC 110V directly!)LED chip quantity : 384LEDs/mWattage: 10W/mCOB strip length: 16.4ft (5 meter)COB strip width: 5mm (0.19 inch)COB strip thickness: 2.2mmCuttable: each 1.64IN (41.66mm) per cutView angle: 180°Color Rendering Index (RA): 90+Waterproof level: IP30 Non-waterproofColor temperature: Warm white(2900-3100K); Natural white (4000K-4200K); Cold white(6000K-6500K)Luminous efficacy: >110LM/WOperation temperature: -20℃-+45℃Storage temperature: -20℃-+60℃ MAIN FEATURES Flexible & Safe The COB strip can be bent to any shapeThe COB LED strip works at DC 12/24V low voltage, safe to use Cuttable & Easy Installation The COB Strip is cuttableWith 3M strong adhesive tape on the back of the led strip, easy installation Dotless Lighting The led strip light has very uniform & soft lightingNo light spots on viewing High CRI LED Strip CRI>90No flicker PRODUCT COMPARATION 5mm COB LED strip has no edge, the lighting is more beautiful.The soldering pads of 5mm COB LED strip are on the back, so the lighting surface is clean and full.5mm COB strip is narrower, can fit more scenes to install.8mm strip can stand a little higher wattage, so 8mm COB LED strip is a little brighter than 5mm ones. How to choose right power supply? 1. The COB strip is around 10W/m, so for 5m (16.4FT) LED strip, it needs a 50W power supply. The power supply can be bigger (60W, 100W, 200W are all ok), but can't be smaller, if the power supp is too small, the led strip will flash during working. 2. Since there's voltage drop of the led strip, the real working power is much less than theoretical value. So it's ok that the power supply is a little smaller than the counted value. 3. Recommended power supply: 12V 16.4FT => 12V 5A adapter (or 12V 60W transformer) 24V 16.4FT => 24V 3A adapter (or 24V 60W transformer) Installation Diagram IMPORTANT NOTICE The COB LED strip CAN NOT be connected to AC110V directly, must add a DC 12V/24V power supply.The AC/DC transformer (power supply) and controller NOT included.The COB strip is dimmable, but need to add a suitable dimmer. Dimmer is NOT included.The COB strip is jointed by 19.6IN-length pieces, so there are some jointed pointes on the COB strip, it's normal.The actual power of the COB strip will be affected by the voltage drop. For example, the real using power of 16FT strip is around 30W, not 10W/mx5m= 50W (theoretical value). The calculation method of 50W is wrong, the voltage drop should be actually considered!Please make sure the installing surface is clean + dry + smooth, or the COB strip cannot be pasted stably.There will be Voltage Drop (the head of the led strip is brighter than the end) if the COB strip is too long. If you want to extend the COB strip to longer length (like 32.8FT or more), need to supply power to both ends of led strip. Addressable COB LED Strip Waterproof Addressable COB LED Strip Waterproof COB LED Strip 3MM COB LED Strip 3MM COB LED Strip 3MM COB LED Strip Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.3 out of 5 stars 10 3.4 out of 5 stars 3 4.4 out of 5 stars 24 4.5 out of 5 stars 18 4.5 out of 5 stars 18 4.5 out of 5 stars 18 Price $29.99$29.99 $39.99$39.99 $33.99$33.99 $20.99$20.99 $19.99$19.99 $20.99$20.99 Beads per meter 720 720 480 384 384 384 LED Strip Length 16.4FT and 32.8FT 3.98FT 16.4FT 16.4FT 16.4FT 16.4FT Voltage 12V and 24V 24V 12V and 24V 12V and 24V 12V and 24V 12V and 24V Color Multicolor Multicolor 3000K 4000k 6000K Red Green 4000K Waterproof Rating IP30 IP68 IP68 IP30 IP30 IP30
【Ultra Thin LED Strip】0.2in/ 5mm ultra thin led light strip, without extra edge, lighting is very beautiful than other led strips.
【High Brightness】MALIGAZA Blue COB Strip is with 384LEDs/m high density of led chips, high light efficacy, very bright but save power.
【Dotless Lighting】MALIGAZA COB LED strip light has no dark area, no lighting spots, the lighting is much more uniform and more beautiful than SMD LED strips.
【Safe Use & Easy Installation】MALIGAZA COB LED strip works at DC 12V or 24V low voltage, without any hazard to humans. With strong adhesive tape on the back of the LED strip, makes it very easy to install the LED tape on any smooth clean surface.

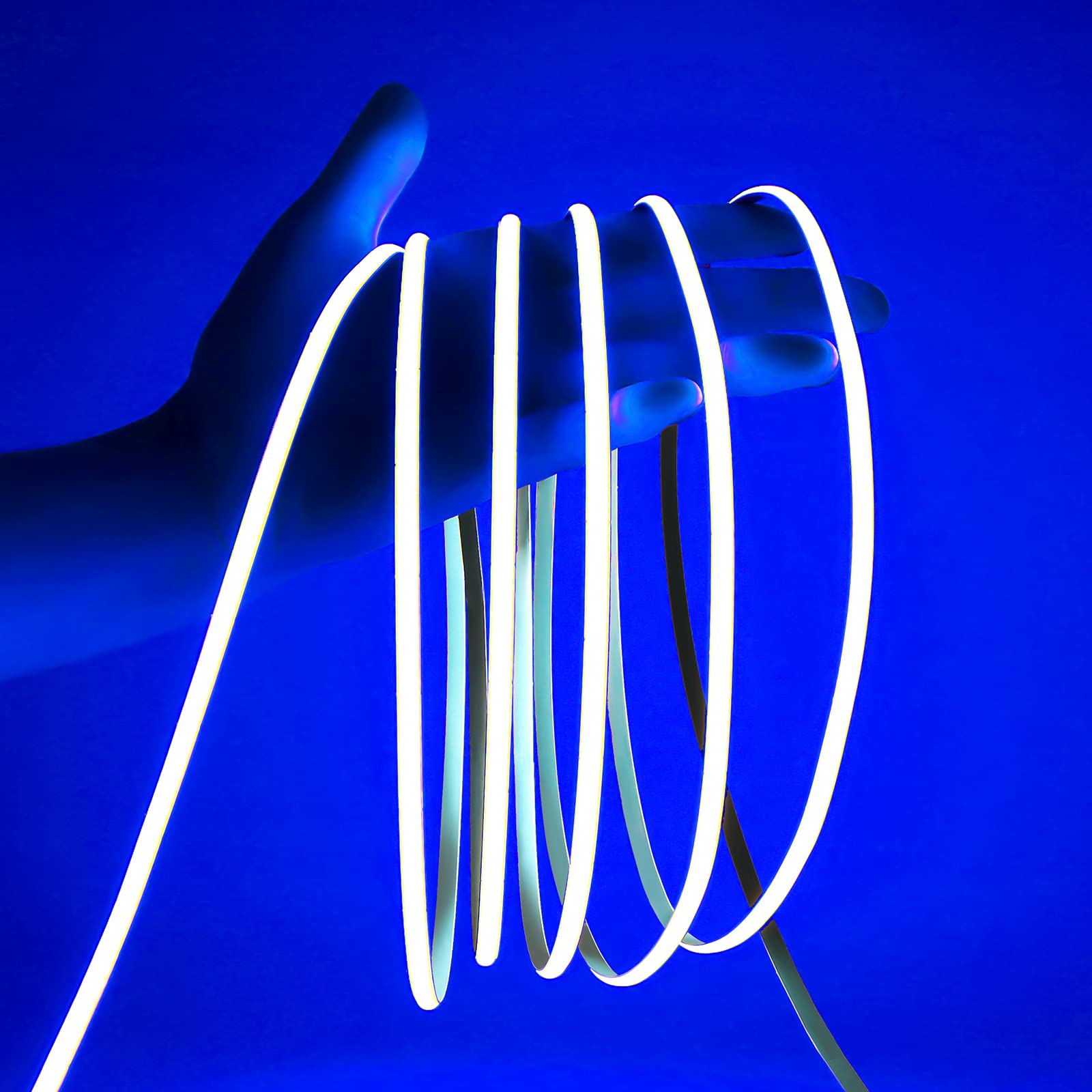

【Flexible & Cuttable】MALIGAZA COB strip is very much flexible, it can be bent or folded to any shape. The led tape is cuttable, every 1.64inch (50mm) per cut, can DIY any ideal length.
【Energy Efficient & Dimmable】MALIGAZA COB LED strip lights with high luminous efficacy, high energy efficient. The light is dimmable with suitable dimmers.
【Widely Application】Suitable for indoor decoration lighting, such as office/ kitchen/ bedroom/ ceiling/ stair/ mirror/ wall backlight/ car lighting etc.
【NOTICE Without Power Supply】Power supply is NOT included, you need to prepare the power supply (AC to DC transformer) by yourself.
Installed this as ambient/accent lighting in my 1983 T3 Vanagon Westfalia.There's plenty if you just want to go down both sides of the interior, but it's about 450mm short to go all the way down both sides of the rear cabin and across the top of the rear hatch.I installed it on interior lip of the inverted "U" shape (where the hinges for the pop top attach) on the surface facing out. This gave imperceptibly less light as opposed to mounting it horizontally, facing down. This affords the added benefit of never looking at the light directly, which not only looks better but doesn't create a jarring effect to the eye.This essentially creates a nearly invisible light source and still lights up the rear cabin completely.I'm likely going to install an adjustable dimmer so that there's no glare in the rear view mirror while driving.I tested it and it stays illuminated down to 10.3v. At this level it creates a nice glow that still reaches the floor.Adheres very very well and feels very strong.I'll add photos/video, soon.Excellent value for the money!
